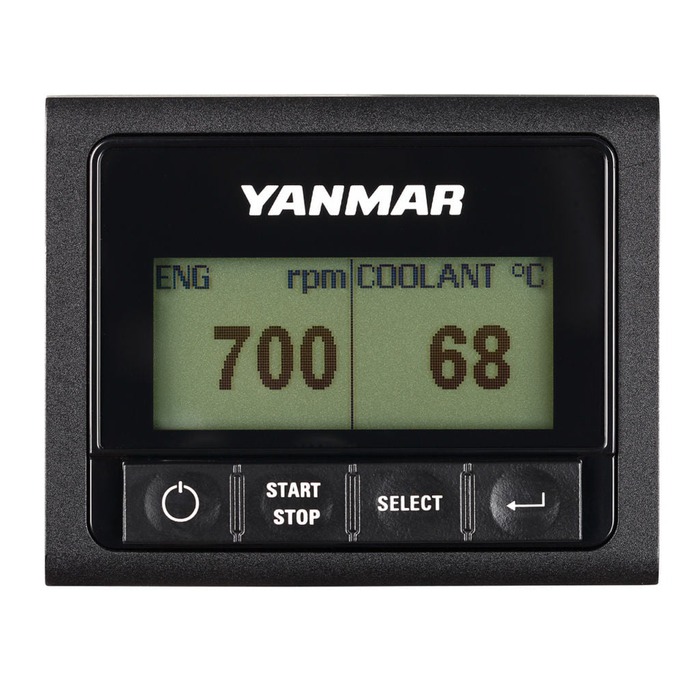

YD25

The YD25 LCD Switch Panel Display is a compact switch panel with a 2.5” LCD display to view all YANMAR engine data, alarms, and diagnostic troubleshooting codes. It easily integrates with multi-function displays and glass helm systems, or can function as a standalone instrument display aboard smaller vessels.

YD25 main features:

• Modern styling
• 4 customizable screens
• Displays engine speed, oil pressure, coolant temperature, engine hours, engine load, and all YANMAR engine alarm and diagnostic troubleshooting codes
• Intuitive operation with waterproof silicon keys
• Easy installation
• Compact engine start/stop switch panel with 2.5” LCD display
• Alternative for A15 switch panel and B25/C35 gauge displays
